1966-80 Tire Pressure Instructions Decals
(A-B-C-E-F-body Chrysler, Dodge, Plymouth)
Decals are printed on high-quality vinyl with sharp lettering. Correctly pre-cut contours. Check your car's build sheet code for the correct number (click here to see a sample build sheet).
1968 cars have any one of three different tire pressure decals, depending on engine, assembly plant, and scheduled production date.
For all 1968-and-later vehicles, decal shows minimum tire size for body-engine-option combination.
Pilot cars for any year may use any decal for any car for that year of production.
Click on part #s to view each decal.
● BX-29 1966 Barracuda fastback / 1967 Charger
● BX-29 1966-67 Charger;
1966-69 Barracuda fastback, also found on 1967-69 hardtop
and convertible
● No # 1966 Belvedere / Coronet / Charger
● VL 1967 Dart / Barracuda (except fastback)
● RW 1967 Belvedere / Coronet
● RW-W29 1968 B-body early-to-mid, St. Louis and Hamtramck plants confirmed
● B 1968 Barracuda early
● 2948064 1968 Dart early, D70-14
● 2948054 1968 B-body early-to-mid (some plants), 383, 440, F-70-14
● 2948055 1968 B-body early, 426, F70-15
● 3400452 1968 B-body mid-to-later, 225, 318, 383-2
● 3400453 1968 B-body early, 7.75-14 and 7.75-15
● 3400454 1968 B-body later, 383, 440, F70-14
● 3400455 1968 B-body later, 426, F70-15
● 3400476 1969 A-body, 340, D70-14
● 3400485
1969 A-body, 340, 383, 440, E70-14
● 3400477 1969 B-body, 383-4 h.p., 440-4 without A/C, 440-6
● 3400481 1969 B-body, 318, 383-2, 383-4
● 3400486 1969 B-body, 383-4, 440-4 with A/C or options
● 3400487 1969 B-body, 426, all models, including Daytona
● 3402105 1969 Daytona, 440 (Early cars had 3400477 decal peeled off before 3402105 was applied over it.)
● 3402055 1970-72 Duster, 340; 1971-72 Demon, 340
● 3402056 1970 Dart, 340
● 3402067 1970 B-body, 225, 318, 383-2

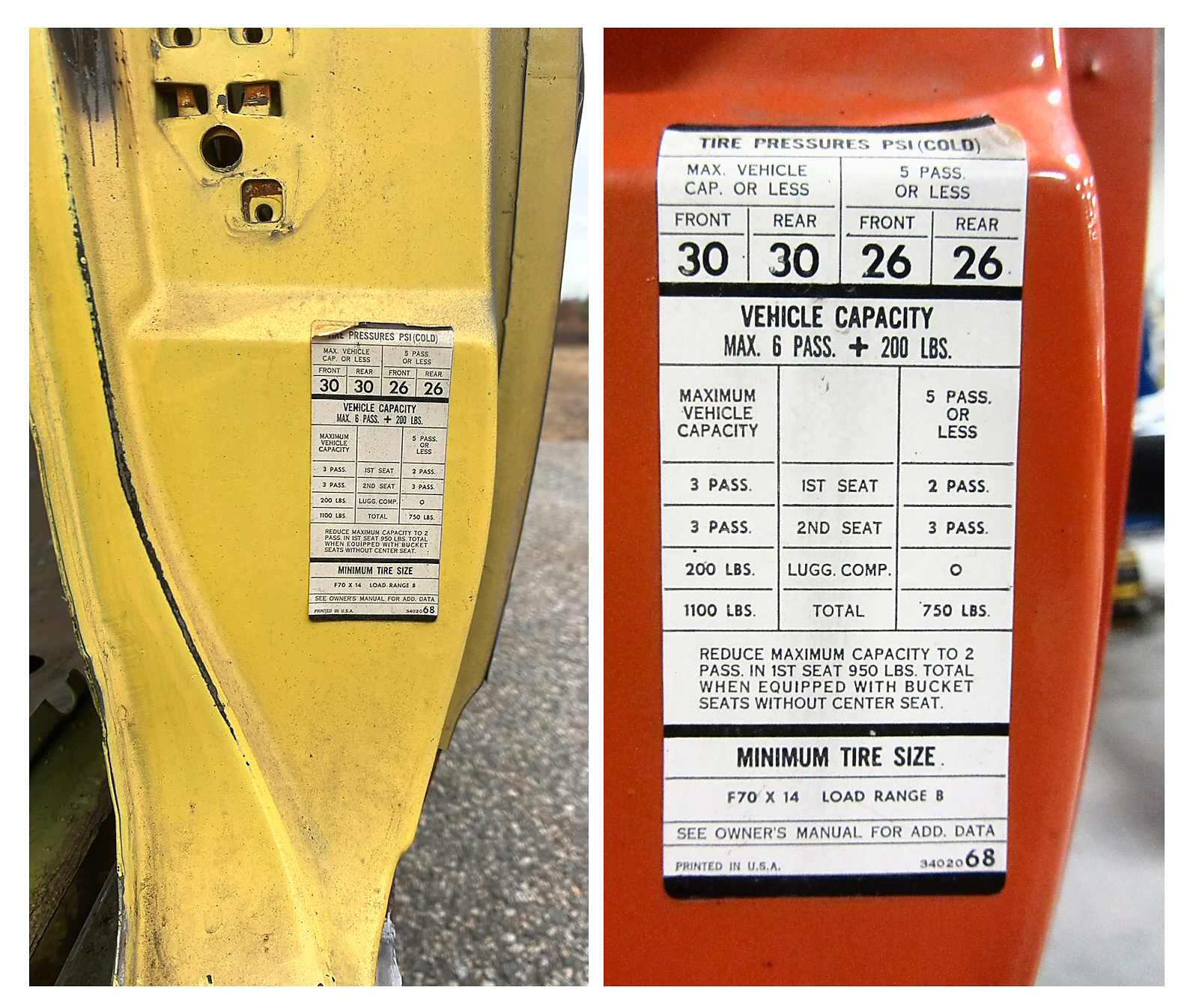

● 3402068 1970 B-body, 383-4, 440-4, 440-6, 426, including Superbird
● 3402057 1970 E-body, 318 with bucket seats
● 3402059 1970 E-body, 440-6 with 15"
● 3402062 1970 E-body, 340-4, 383-2, 383-4, 440-4 w/o A/C, 440-6 w/ 14"
● 3402064 1970 E-body, 426
● 3402098 1970 E-body, 340-6
● 3402082 1970-71 C-body
● 3402163 1971 B-body, G70x14
● 3402335 1971 B-body, 318, and low performance;
1972 B-body, 318, 400-4, and probably others
● 3402336 1971 B-body, F70x14
● 3402317 1971-72 E-body, 318
● 3402330 1971 E-body, 426
● 3402331 1971 E-body, 340, 383, 440-4, 440-6 with 14"
1972-74 E-body, some 318, and 340, 360 with 14"
● 3402333 1971 E-body, 440-6, E60-15
● 3402324 1973 B-body, 318, 340, 400, some 440
(There are other versions of this same decal part #.)
● 3815051 1973-74 B-body, 440
● 3815059 1974 A-body, 360 h.p.
● 4014901 1976-80 F-body (Aspen, Kit Car, Road Runner Volare, Super Coupe)
